Description

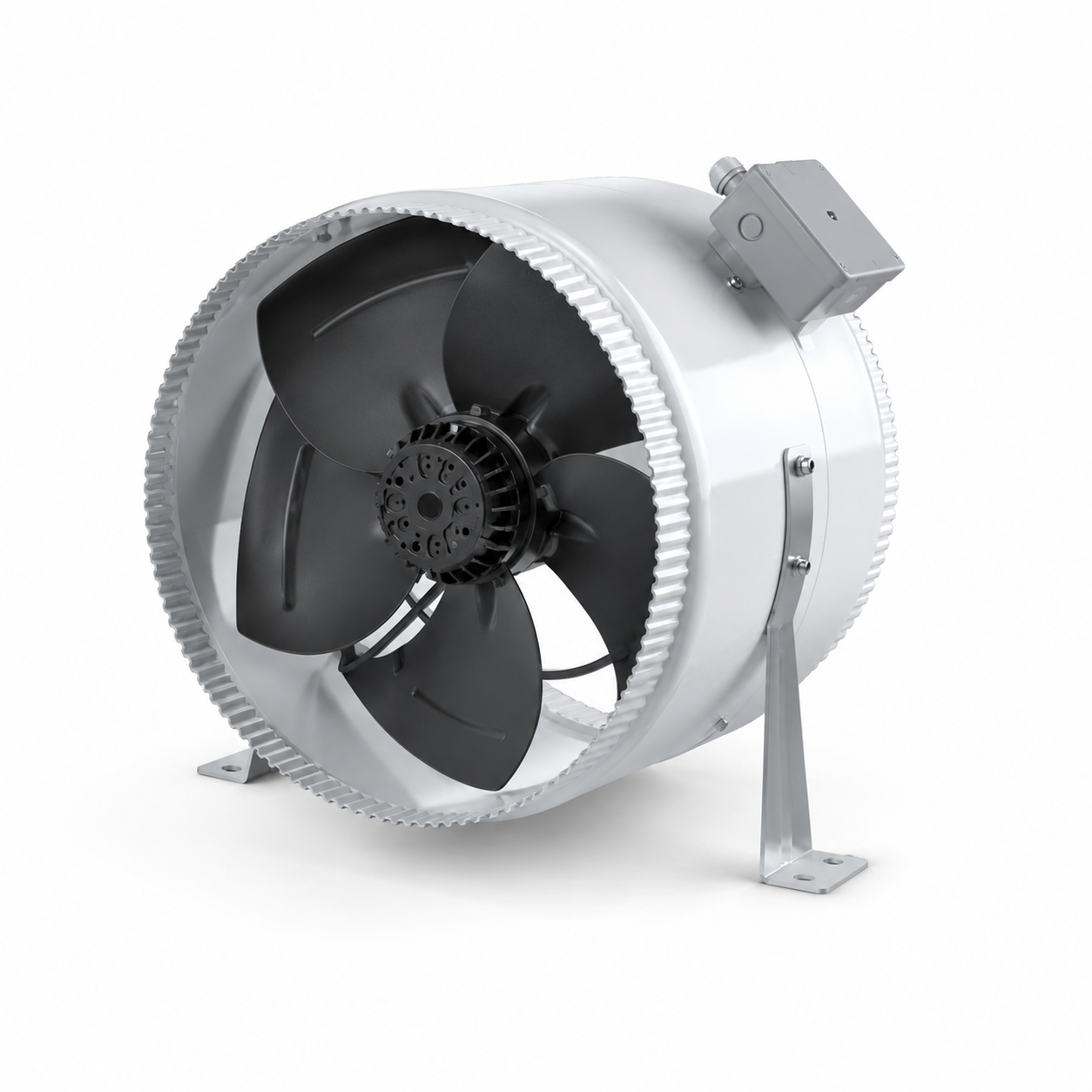

Turbo-F 300 4E – Inline Axial Fan
The Turbo-F 300 4E is a 300 mm, 4-pole inline axial fan designed for reliable supply and exhaust ventilation where high airflow is required with relatively low system resistance. Built with a coated steel fan casing and impeller, it provides durable performance for ducted ventilation applications.
The Turbo-F series features an external terminal box mounted directly to the fan casing, allowing for convenient electrical connection. Its 30 mm deep corrugated casing sides are designed for easy attachment to air ducts, making installation straightforward in commercial, industrial, and agricultural ventilation systems.
Key Features
- 300 mm 4-pole inline axial fan
- Suitable for supply and exhaust ventilation
- Designed for high airflow and low system resistance applications
- Coated steel fan casing and impeller
- External terminal box mounted to fan casing
- 30 mm deep corrugated casing sides for duct attachment
- IPX4 protection rating
- Operating temperature range: -30°C to +60°C
-
| Specification |
Turbo-F 300 4E |
| Part Number |
BLATUBO-F3004E |
| Voltage |
1~230 V / 50 Hz |
| Power |
75 W |
| Current |
0.35 A |
| Maximum Air Flow |
1340 m³/h / 372 l/s |
| Speed |
1350 RPM |
| Sound Pressure at 3 m |
58 dBA |
| Transported Air Temperature |
-30°C to +60°C |
| Protection Rating |
IPX4 |
